HD-SDI Camera


Technical Parameters

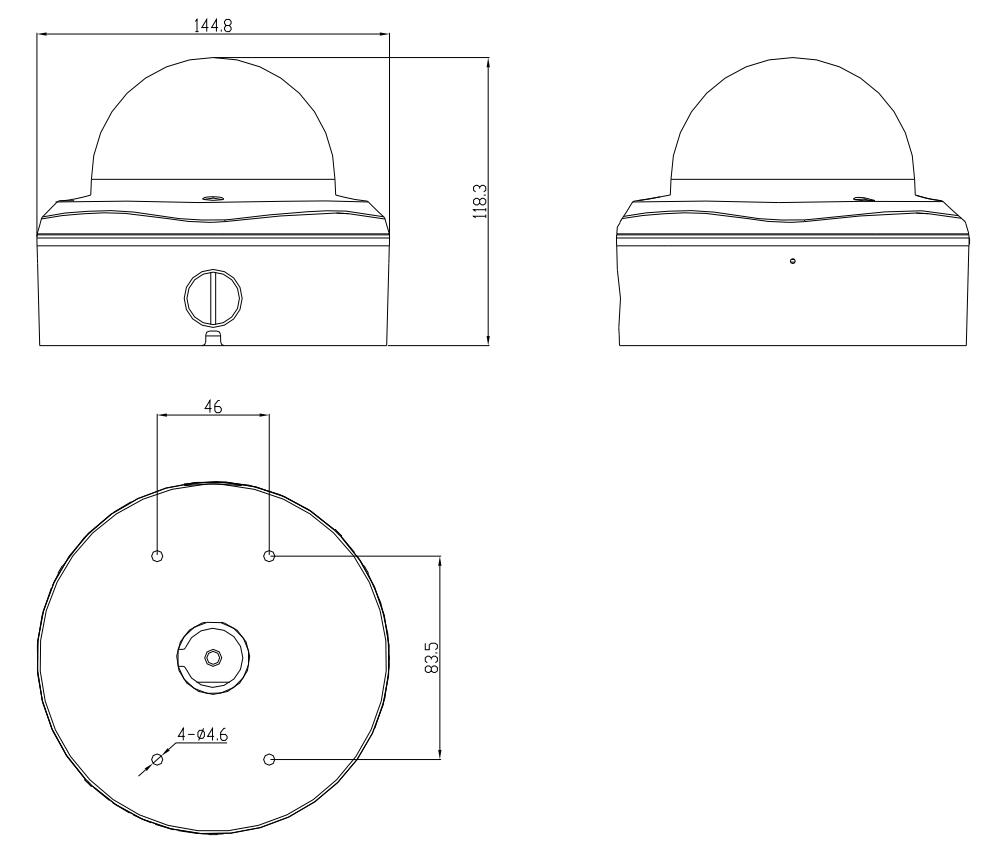

Shape Dimension
Similar Products
Annex Download

Features: 1080P@30F/S High Definition
  Pixel 1920*1080
  1/2.8'' Sony Exmor Sensor
  OSD MenuSense-up/3D DNR/Digital Zoom functions ect.
  3.6mm 3Mega Pixel Lens
  24pcs IR Leds, 15m IR distance
  Day&Night Working Mode
  Mechanical IR Cut Filter
  DC12V
  Weather-proof Housing IP 66

Specifications:
MODEL: ST-SDI8081-5R-W
Solution: 1/2.8''Sony Exmor Sensor
Effective Pixels: 1920*1080
 Resolution: 1080P@30F
Built-in Lens: 3.6mm 3Mega Pixel Lens
Signal System: PAL/NTSC
Sync. System: Internal Sync.
Sensor Area: 5.42mm x 3.41mm
OSD Functions: Sense-up/3D DNR/BLC/HLC/Motion Detection/Privacy/Image Conversion
Video Output: 1.0Vp~p75Ω
S/N Ratio: More than 50dB (AGC OFF)
Gamma Characterictic: 0.45
White Balance: Auto Tracking White Balance
Weather-proof: IP67
Shutter Speed: 1/50(1/60)~100,000Sec.
Iinfrared Lamps: Night/Day ON/OFF
Illumination for Infrared Switching 3 Lux
Infrared Wavelength: 850nm
Mimimum Illumination: 0Lux(Infrared Lamps Turn on)
IR Leds: 24pcs
IR Radiation Distance: 20m
Working Temperature: -10℃~50℃
Storage Temperature: -20℃~60℃
Power Requirement: DC12V, 390mA
Dimension: 91 x 62 mm
Weight: 0.5kg
