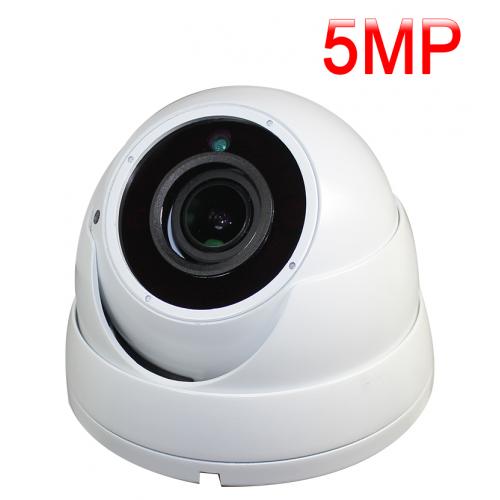

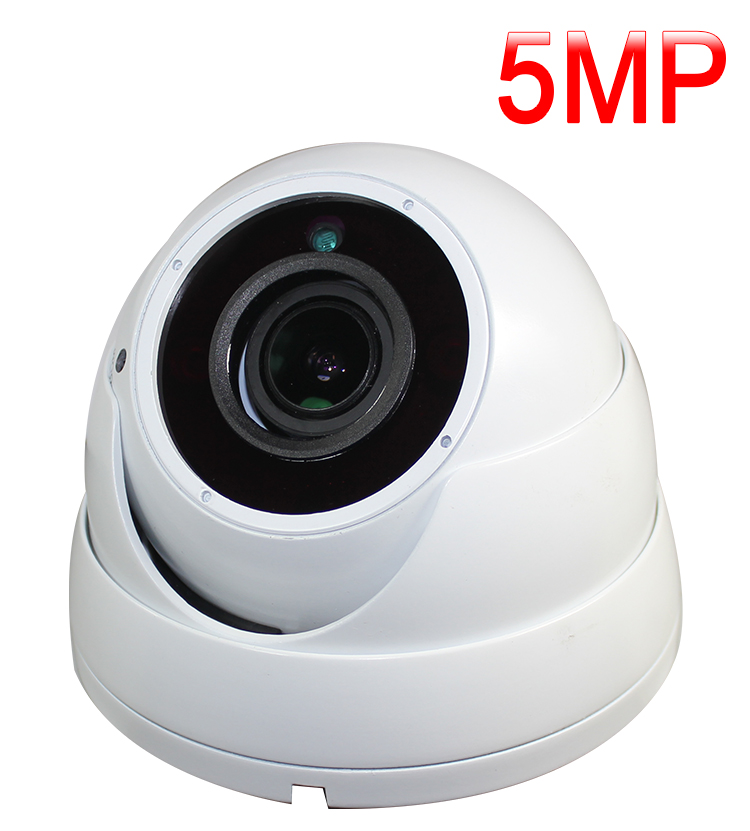

The Smartview SW-B02W-M 5 MP Outdoor Big Eyeball Metal White Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video, Support TVI,AHD,CVI and 960H Analog 4 in 1, swith them with the toggle cable.


* Minimum Illumination: 0.3 lux @ (f/1.2, AGC on), 0 lux with IR
* Up to 2560 x 1944 Resolution
* Auto Focus, 2.7 mm to 13.5 mm Motorized Vari-Focal Lens
* 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps，1080p @ 25 fps
* 4 Power Cob leds  up to 60 m IR Range
* 3D/2D DNR
* IP67
* 12 VDC ±30%
